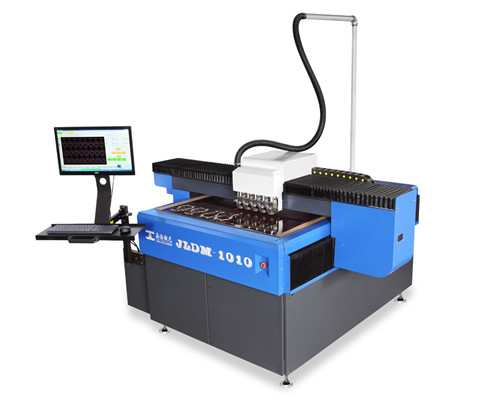

產品名稱：JLDMH-1210-R 底模機 配割膠，打樣和繪圖功能
所屬類別：底模機
產品品牌：嘉洛激光
產品型號：JLDMH-1210-R
瀏覽次數：1158 次
適用范圍：
l 底模機 配割膠，打樣和繪圖功能
PERTINAX COUNTER with rubber /sample cutting and plotting
l 型號：JLDMH-1210-R
MODEL: JLDMH-1210- R
技術數據 tech data
1 | 主軸速度 Spindle speed | 轉速0~60000轉/ 分 Rotating speed 0-6000/min |
2 | 機器功率 Machine Power | 6.0KW |
3 | 切割速度 Cutting speed | 4000mm/min |
4 | 切割幅面 Working area | 1200mm*1000mm |
5 | 切割精度 Cutting precision | ±0.02mm |
6 | 主軸跳動精度 Spindle runout accuracy | ±0.005mm |
7 | 重復精度 Repeat precision | ±0.01mm |
8 | 刀具跳動精度 Tool runout accuracy | ±0.005mm |
9 | 工作方式 working style | CNC |
10 | 供電電源 Supply power | 三相380V±5％、50/60HZ Three phase 380V±5％/50/60HZ |
11 | 機器尺寸 Machine size | 2600*2100*2200mm |
注：此機器為特殊規格需要訂制。 Note: The machine is special made as request. | ||
JLDMH-1210-R特點：
JLDMH-1210-R Features:
1. 加工幅面1200*1000，專門針對1200*1000全幅底模材料。
Working area 1200*1000mm; specifically for pertinax counter material of 1200 * 1000mm
2. 采用1個日本高速高精度主軸，5把刀分別用于開槽(X 和Y兩方向)、定位孔、打磨、切斷，軟件自動順序加工，簡單高效，一氣呵成。高速主軸最高轉速高達60000RPM,確保底模加工質量和效率。
Using one pieces Japanese high-speed and high-precision spindle, Five types tools respectively for slotting(X and Y two directly), positioning holes, grinding and cutting off, the software automatically order processing, simple and efficient; High-speed spindle speed up to 60000RPM, to ensure the pertinax counter processing quality and efficiency.
3. 采用隨動加工方式，保證開槽的加工深度穩定，有效避免其他控制方式存在的深度控制的難點。
With the floating head processing methods to ensure the depth of processing slot stability;
4. 底模機專用軟件，采用WINDOWS界面，操作簡單高效，避免采用通用數控系統的繁復操作及指令。
Professional software for pertinax counter making machine, using WINDOWS system, simple and efficient operation; to avoid complex operations and instructions as common CNC system
5. 優秀的吸塵設計方式，有效避免其他機型加工廢料滿天飛的情況。
Excellent vacuum design, effectively avoid waste processing situation
6. 整機氣路系統采用SMC品牌，確保高頻率加工的可靠性。
The whole air system uses SMC brand, to ensure the reliability of high-frequency processing.
7. 高品質進口絲桿和導軌，保證加工精度。
High-quality imported screw and guide rail to ensure processing accuracy.
8. 完善的硬件聯鎖保護，有效的保護主軸使用。
Perfect hardware interlock protection, effective protection of the spindle used.
9. 可以割膠條、打樣和繪圖
It can cut rubber, sample cutting and plotting；
